FlashDot

About FlashDot

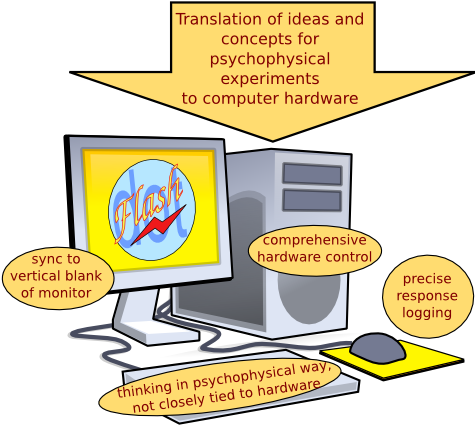

FlashDot is a program for generating and presenting visual perceptual experiments that require a high temporal precision. It is currently used in the Max-Planck-Institute for Mathematics in the Sciences for visual experiments. It aims to be an alternative to such popular libraries or packages as the Psychophysics Toolbox, VisionEgg, or PsychoPy.

Features

stand-alone software, no need for additional interpreted programming languages like Matlab or Python
focuses on high temporal precision for stimulus presentation (e.g. permanent checking for lost frames etc.)
highly portable to many platforms (OpenGL), reference implementations available for Linux, MacOS X, and Microsoft Windows
can be controlled either by a specific scripting language or by XML (which allows the use of graphical editors)
includes a large number of mathematical and statistical functions (helpful for user implementations of online data analysis for adaptive sampling etc.)

Documentation

FlashDot is fully functional, but a complete documentation has to be written yet (sorry for that). The provided packages are useful for current FlashDot users; if you are new to FlashDot and would like to try it out but cannot figure out solutions for specific problems, please let me know.

A quick overview and introduction by example is provided by the file firststeps.pdf.

Download

Some pre-compiled packages can be found on the Download page. Please read also the operation system specific hints below.

Linux

Currently, debian packages are provided that have been tried out on Ubuntu 8.04 and later but should work under Debian as well. Download the deb file according to your architecture (i386 or AMD64). They can be installed, for instance, like this:

dpkg -i filename.deb

If you are using another distribution, please get the sources (see below).

MacOS X

I provide a MacPorts package. If you haven't installed MacPorts yet on your system, please follow these instructions. Note that you need to install Xcode before (as described there).

After MacPorts installation, I recommend to add sourceforge to your svn keys. You can do this by opening a terminal and executing this line:

echo p | svn ls https://flashdot.svn.sourceforge.net/svnroot/flashdot

Having done so, you can install flashdot (also in the terminal):

sudo port install flashdot

Microsoft Windows

Download the msi file and double click to install.

Important note: Make sure that under your system OpenGL is synchronized to the vertical blank of your monitor. Unfortunately, on some systems this is disabled by default. This can usually be set in your graphics card's OpenGL settings. Have a look at your Display Settings which can be found under Start → Control Panel → Personalization (or Appearance and Personalization → Personalization) → Display Settings → Advanced Settings → (settings of your specific graphics card driver).

This concerns only Microsoft Windows; under Linux and MacOS X, FlashDot automatically synchronizes to VBlank.

Compile from sources

Get the sources via subversion:

svn checkout https://flashdot.svn.sourceforge.net/svnroot/flashdot flashdot

You need OCaml, GSL, and SDL (as well as the respective OCaml libraries) for compilation. Once all the required dependencies are installed, just do the usual procedure:

make
make install

If you would like to test the program but have problems with compilation, please send me an email: tobias-elze (at) users.sourceforge.net. I am looking forward to comments of interested developers and testers.

Disclaimer

This program is distributed in the hope that it will be useful. It comes “as is”, without any warranty.
